TITAN V3 Expert Module
TITAN V3 Expert Module

Gate

TITAN V3 Expert Module

Product Code: TTN3-EM

Login to view prices
In stock | Usually dispatched within 24 hours
Order in for delivery on

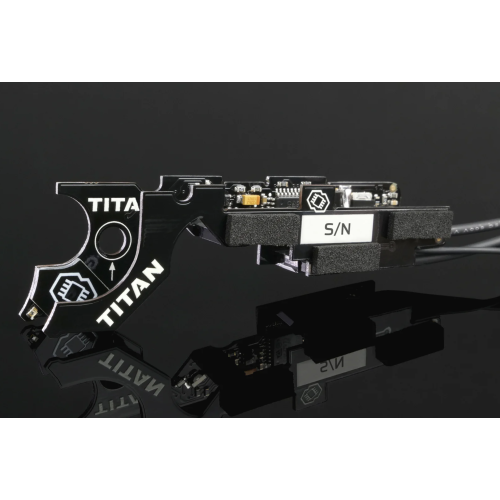

TITAN V3 is an AEG Control System for V3 gearboxes which will transform your airsoft replica into advanced training equipment. Adjust your AEG and check the Statistics using a USB-Link or Blu-Link and GATE Control Station for PC, macOS, iOS, and Android devices. TITAN V3 enables you to adjust trigger sensitivity with military precision. The innovative proximity trigger sensor gives you up to 300 possible sensitivity settings. Gain a tactical advantage thanks to the extremely fast trigger response and many other useful functions. Give your AEG a new lease of life! TITAN is not just another drop-in mosfet. It is the complex system that turns your AEG into an advanced training system.


Supply Voltage Range
3.75-17 V

Current Consumption

22 mA

Low Power Mode

320 µA

Dimensions (Length x Width x Height)

79.0 x 25.8 x 13.5 mm

Finished Product Weight

28.2 g

Operating Temperature Range
min. -15°C max. + 50°C

Relative Humidity

≤ 80%



Connect your TITAN with the GCS App and get total control of your AEG:
- Control your airsoft gun from your iOS, Android, macOS or Windows device
- Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way
- Use automatic Pre-Cocking to gain a trigger reaction just like in a real gun
- Try out ROF control, magazine simulation, and other functions
- Update and upgrade Firmware
- Check BB counters and telemetric data
- Perform diagnostics and send reports
- Virtual STATUS for smartwatches and smartphones
- Bolt Catch and magazine sensors for a realistic reload sequence


What makes TITAN V3 so special?
User-friendly configuration via the GATE Control Station App
Firmware updates via the internet enabling improvements
Proximity trigger sensor offering you even 250 possible sensitivity settings
Innovative optical sensors instead of mechanical switches that can be prone to faults
Access to the Statistics and Telemetry
Replicates trigger response like in real life
Compatible with DSG, SSG and 19-tooth gears

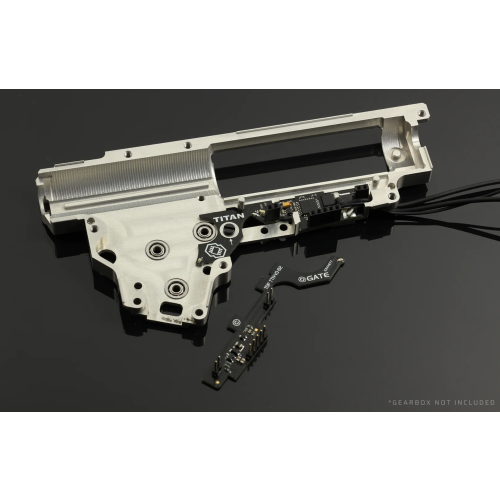

Compatible with most V3 gearboxes (including CNC ones) on the market without any modification
Compatible with most powerful AEG replicas
