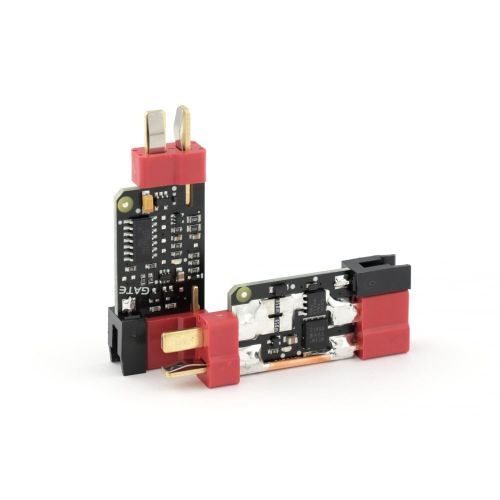

Gate NanoHARD multifunctional programmable AEG Controller
Product Code: GATE-nHARD
NanoHARD is a multifunctional programmable AEG Controller. It has 8 functions. Thanks to its special coating, it is resistant to atmospheric conditions (Military Specification MIL-V-173C). Battery protection supports: Li-Po 7.4V / 11.1V / 14.8V.
You can also disable the protection and use other batteries.
Do you want to achieve a higher rate of fire and faster trigger response? Are you planning a power upgrade of your rifle? In that case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher rate of fire of the rifle and a faster trigger response, and the contacts are protected against burn out.
Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, the Controller will not allow firing.
This provides full compatibility with the micro-switches. It ensures full resistance to contact bounce (vibration). You gain a bigger ROF, a faster trigger response and your MOSFET is less prone to overheating.
3RD GENERATION MOSFET
The advent of modern transistors and microcontroller has enabled us to create the smallest and most reliable AEG Controller on the market.
14.8V LI-PO READY
The system can be used with batteries up to 14.8V LI-PO. Minimum operating voltage is 3V and maximum voltage is 17V.
Thanks to its special conformal coating, it is resistant to atmospheric conditions (Military Specification MIL-V-173C).
ON/OFF ACTIVE BRAKE
The Controller provides you with the opportunity to decide if you want to use the Active Brake function. If you do not need this, you can turn it off easily. It will lead to improving the lifespan of your motor.
Do you care about realism? Would you like to increase the life of the gearbox? Does your rifle have such a high rate of fire that you are not able to make a single shot? The Active Brake sorts things out. In SEMI Mode, the brake does not allow for compressing a piston after a shot. The piston will stop in the front position which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts. This is important, especially with an AEG power upgrade. After releasing the trigger, the rifle immediately stops firing. So, you gain more realism and, additionally, you do not waste your precious ammunition.
We have developed an electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.
It allows you to quickly check whether the AEG Controller works properly. If you have problems with your AEG, the BUILT-IN SELF-TEST allows you to check that the problem is not caused by the Controller.
Included in the kit:
Additional kit of Deans-T Connectors
Single signal wire for trigger contacts
Double signal wire for trigger contacts
